Description
Camera Specifications
-
Image Sensor: 1/3″ Progressive Scan CMOS
-
Lens: 4mm @ F2.4
-
Field of View:
-
Diagonal: 85°
-
Horizontal: 75°
-
Vertical: 45°
-
-
Shutter Speed: Self-adaptive
-
Day & Night Functionality: IR-cut filter with auto-switching
-
Digital Noise Reduction (DNR): 3D DNR
-
Wide Dynamic Range (WDR): Digital WDReBay+1YouTube+1EZVIZ+2Almiria Kenya+2EZVIZ+2
Video & Audio
-
Resolution:
-
3MP (2048 × 1536)
-
4MP (2560 × 1440)
-
-
Frame Rate: Up to 15 fps; self-adaptive during network transmission
-
Video Compression: H.264
-
Audio: Two-way audio with built-in microphone and speakerEZVIZ+3Almiria Kenya+3EZVIZ+3
Network & Connectivity
-
Wi-Fi Standards: IEEE 802.11b/g/n
-
Frequency Range: 2.4 GHz ~ 2.4835 GHz
-
Channel Bandwidth: Supports 20 MHz
-
Security Protocols: WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
-
Transmission Rate:
-
11b: 11 Mbps
-
11g: 54 Mbps
-
11n: 72 Mbps
-
-
Wi-Fi Pairing: AP pairing
-
Protocol: EZVIZ Cloud proprietary protocolEZVIZ+3Almiria Kenya+3EZVIZ+3
Storage Options
-
Local Storage: Supports microSD card up to 256 GB
-
Cloud Storage: Supports EZVIZ CloudPlay (subscription required)
General Specifications
-
Operating Conditions:
-
Temperature: -10°C to 45°C (14°F to 113°F)
-
Humidity: 95% or less (non-condensing)
-
-
Power Supply: DC 5V / 1A
-
Power Consumption: Maximum 5W
-
Dimensions: 88 × 88 × 118.7 mm (3.46 × 3.46 × 4.67 inches)
-
Net Weight: 259 g (9.14 oz)
In the Box
-
Included:
-

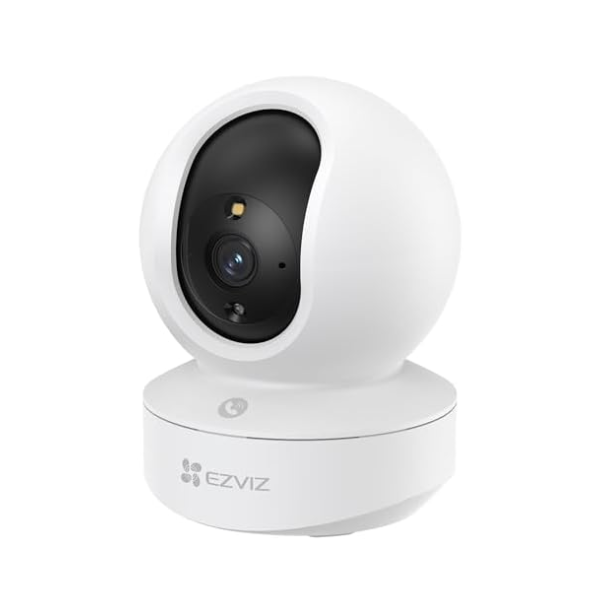

TY1 Pan/Tilt Camera
-
Base
-
Screw Kit
-
3-meter Power Cable (9.8 ft.)
-
Power Adapter
-
Drill Template
-
Quick Start Guide
-
