Description
CCTV Cameras (16 Units – Color Day Cameras)
-
Brand: Hikvision (Turbo HD Series or equivalent)
-
Type: Analog HD Bullet/Dome Cameras
-
Resolution: 2MP (1080p Full HD)
-
Image Sensor: 1/2.8” Progressive CMOS
-
Lens: 3.6mm Fixed Lens (Wide Angle ~82°)
-
Video Output: HD-TVI (High Definition Transport Video Interface)
-
Day/Night Function:
-
True Day/Night (ICR)
-
Color during day, IR at night (up to 20–30 meters range)
-
-
IR LEDs: Smart IR for night vision
-
Housing:
-
Weatherproof (IP66/IP67)
-
Suitable for outdoor & indoor installation
-
-
Power Supply: 12V DC, ~4W per camera
DVR (16-Channel – DS-7116HQHI-K1 or DS-7100 Series Equivalent)
-
Video Input: 16 x BNC (Analog HD cameras)
-
Video Compression: H.265+/H.265/H.264+/H.264
-
Recording Resolution:
-
Supports up to 1080p Lite or Full HD (1920×1080)
-
-
Audio:
-
1–4 Audio Input Channels (RCA)
-
1 Audio Output
-
-
Video Output:
-
1 HDMI (up to 1080p)
-
1 VGA
-
-
Playback:
-
1–16 Channel Simultaneous Playback
-
Smart search by time/event/motion
-
-
Storage:
-
1 or 2 SATA Interfaces (up to 6TB each)
-
Preinstalled HDD (optional – usually 1TB to 4TB)
-
-
Network:
-
1 RJ-45 Ethernet Port (10/100 Mbps)
-
Hik-Connect App Support for remote view (iOS/Android)
-
-
USB Ports: 2x USB 2.0 for backup or mouse control
-
Power Supply: 12V DC
Cabling – 300m CCTV Combo Cable
-
Cable Type: RG59 Coaxial + DC Power Cable (2-in-1)
-
Length: 300 meters (to be split across all 16 cameras)
-
Connectors:
-
BNC (Video) & DC Jack (Power)
-
-
Cable Quality:
-
Shielded for long-distance transmission
-
UV-resistant for outdoor use
-
Supports signal up to 300m (with power boosters if needed)
-

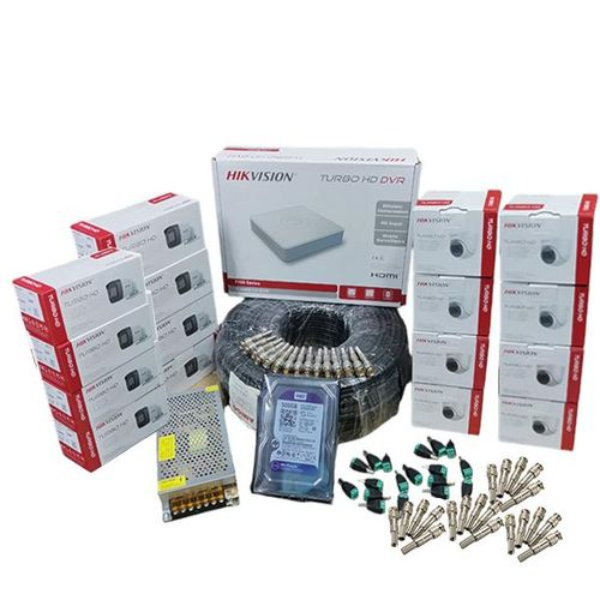

Full Kit Inclusions
| Item | Quantity |
|---|---|
| 2MP Color Day CCTV Cameras | 16 |
| 16-Channel DVR (DS-7100) | 1 |
| Preinstalled HDD (1–4TB) | 1 |
| RG59 + DC Combo Cable (300m) | 1 Roll |
| BNC Connectors | 32 |
| DC Connectors | 16 |
| Power Supply Units/Adapters | 1–2 |
| Splitter Power Cables | 2–4 |
| Mounting Screws & Plugs | 16 Sets |
| Mouse (for DVR) | 1 |
| User Manual & Quick Guide | 1 |
Optional Add-ons (Recommended)
-
Monitor (19″–24″ LED for live viewing)
-
UPS (For power backup)
-
Junction Boxes or Weatherproof Housings
-
Cable Clips or Trunking
