Description
Overview

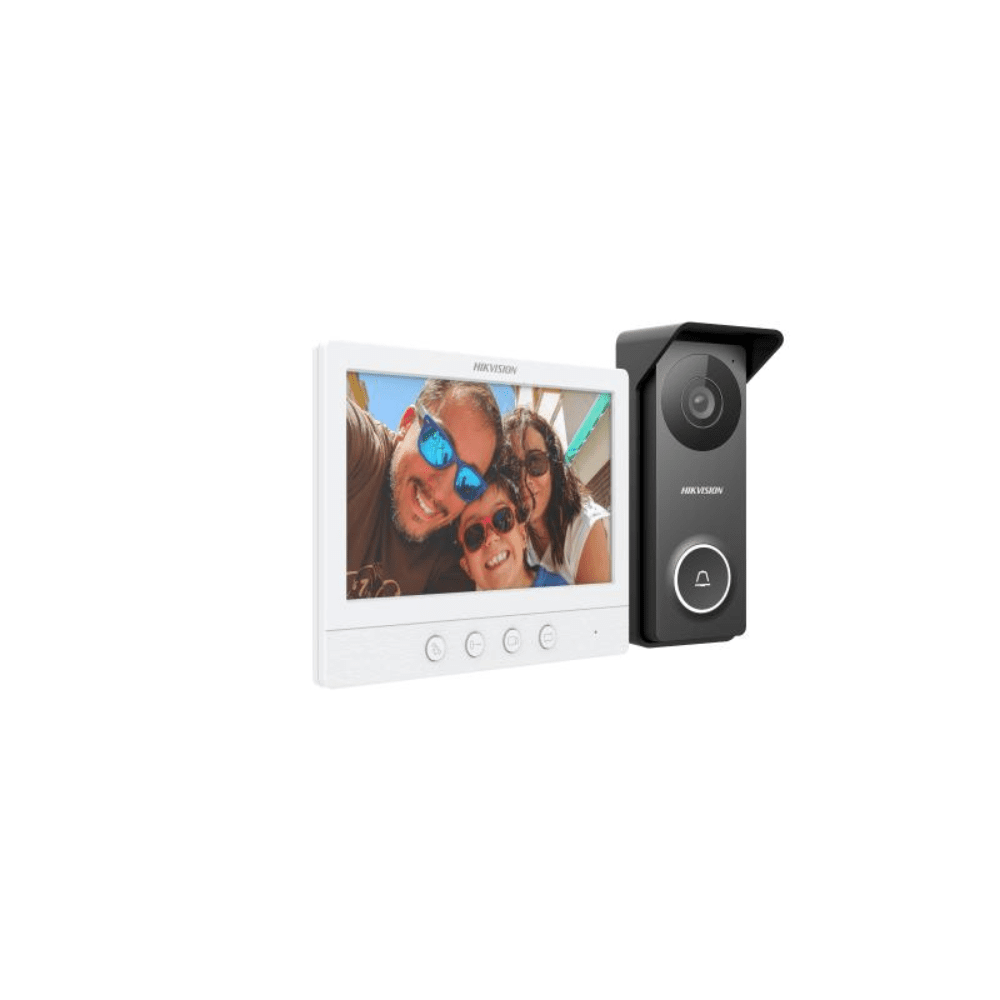

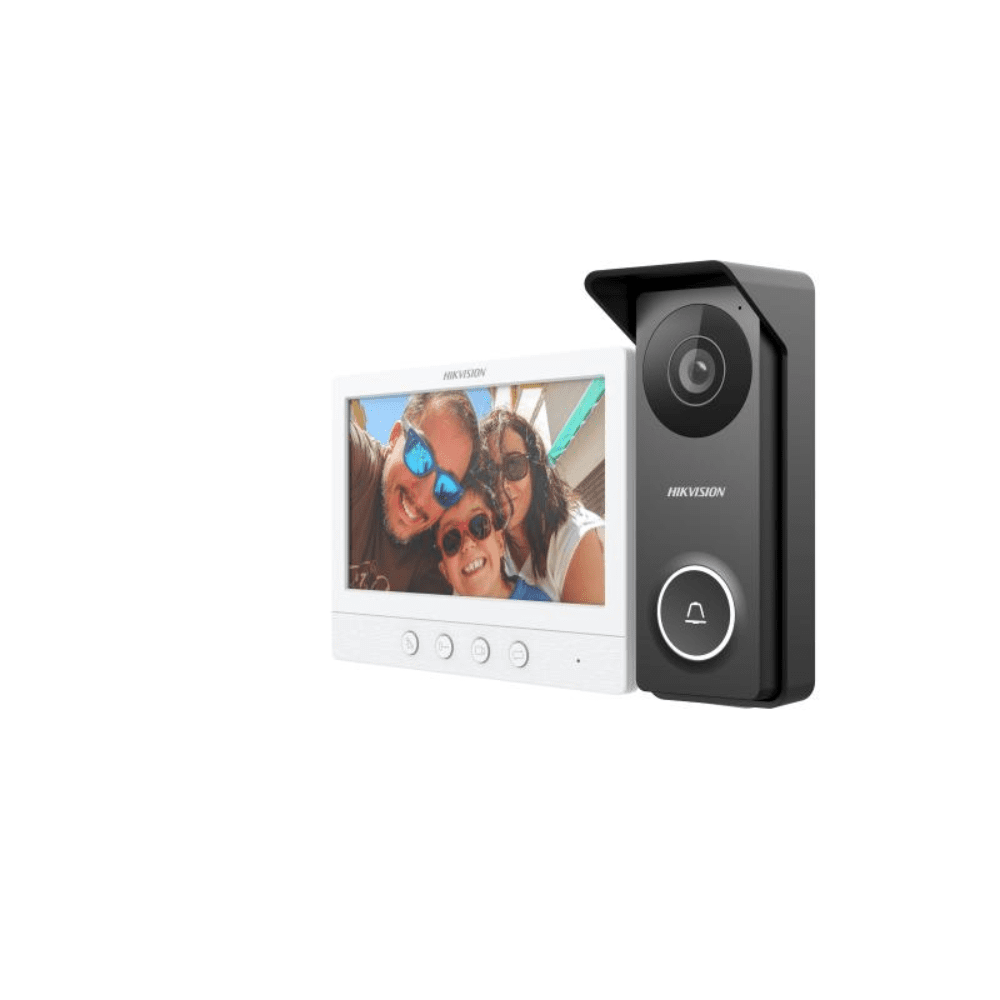

The Hikvision DS-KIS213 is a 4-wire HD video intercom kit designed for villas, homes, offices, and small commercial properties. It includes a 7-inch indoor monitor and a weatherproof HD door station, offering plug-and-play installation over existing 4-wire cabling.
Key Features
- HD TVI video quality
- 7-inch color TFT LCD monitor
- 4-wire Plug & Play installation
- Two-way audio communication
- Remote door unlocking
- IR night vision up to 3 meters
- IP65 weatherproof and IK08 vandal-resistant door station
- Supports additional indoor monitors and door stations
Door Station Specifications
Camera
- Resolution: 1280 × 720 (720p HD)
- Frame Rate: Up to 60fps
- Viewing Angle:
- Horizontal: 117°
- Vertical: 70°
- Diagonal: 141°
- IR Supplement Light: Up to 3m night vision range
Audio
- Built-in omnidirectional microphone
- Built-in loudspeaker
- Two-way communication
- Echo suppression and noise reduction support
Door Control
- 1 relay output for electric lock control
- Relay Rating: Max 30V DC / 1A
- Supports electric strikes and magnetic locks via relay output
Physical Features
- One call button
- Metal housing
- Surface mounting
- Protection Rating:
- IP65 (water and dust resistant)
- IK08 (impact resistant)
- Dimensions: 145 × 55 × 24 mm
Environmental
- Operating Temperature: -30°C to 60°C
- Humidity: 10% to 90% RH
Indoor Monitor Specifications
Display
- Screen Size: 7-inch TFT LCD
- Resolution: 1024 × 600
- Color Display
- Physical button operation
Audio
- Built-in microphone
- Built-in speaker
- Full duplex hands-free communication
Capacity
- Supports up to:
- 2 indoor extension monitors
- 2 door stations
- 1 analog CCTV camera input
Interfaces
- Four-wire interface
- BNC input for analog camera
- DIP switch configuration
- Debug port
Power
- Power Supply: 12V DC
- Power Consumption: ≤ 4W
Physical
- Surface mount installation
- Dimensions: 178 × 132 × 19 mm
- Operating Temperature: -10°C to 55°C
