Description

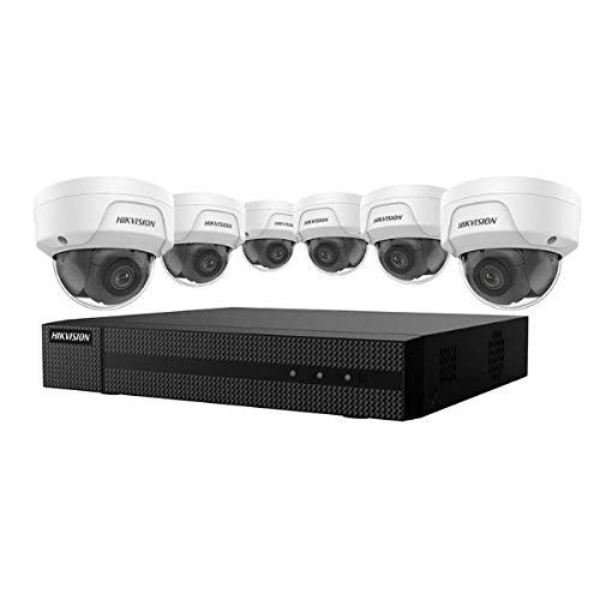

NVR: Hikvision DS-7108NI-Q1 (8-Channel Network Video Recorder)
-
Channels: Supports up to 8 IP cameras
-
Recording Resolution: Up to 4MP per channel
-
Video Compression: H.265+ / H.265 / H.264+ / H.264
-
Decoding Capacity:
-
1 channel at 4MP, or
-
2 channels at 1080p
-
-
Video Output:
-
HDMI (up to 4K resolution)
-
VGA (up to 1080p)
-
-
Audio: Optional (depends on camera)
-
Storage:
-
1 SATA interface
-
Supports up to 6TB HDD
-
-
Network Interface: 1 × RJ-45 10/100 Mbps Ethernet
-
USB Ports: 2 × USB 2.0
-
Remote Access: Via Hik-Connect mobile app or desktop client
-
Power Supply: 12V DC
IP Cameras (6 Units – 2MP IR Cameras)
-
Resolution: Full HD 1920 × 1080 (2MP)
-
Image Sensor: 1/2.8″ Progressive Scan CMOS
-
Lens: 2.8mm fixed (standard wide-angle view)
-
IR Night Vision: Up to 30 meters
-
Day/Night: IR cut filter with automatic switch
-
Features:
-
Motion detection
-
3D DNR (Digital Noise Reduction)
-
D-WDR (Digital Wide Dynamic Range)
-
-
Weatherproof: IP67-rated, suitable for outdoor and indoor use
-
Power Supply: 12V DC or PoE (Power over Ethernet)
-
Build: Compact bullet or dome housing (varies by model)
Cabling & Accessories
-
Cable Included: 150 meters total (Cat5e or Cat6 for IP/PoE connection)
-
Connectors: Pre-terminated RJ45 or to be crimped on-site
-
Power Options: Via PoE switch or 12V DC adapters
