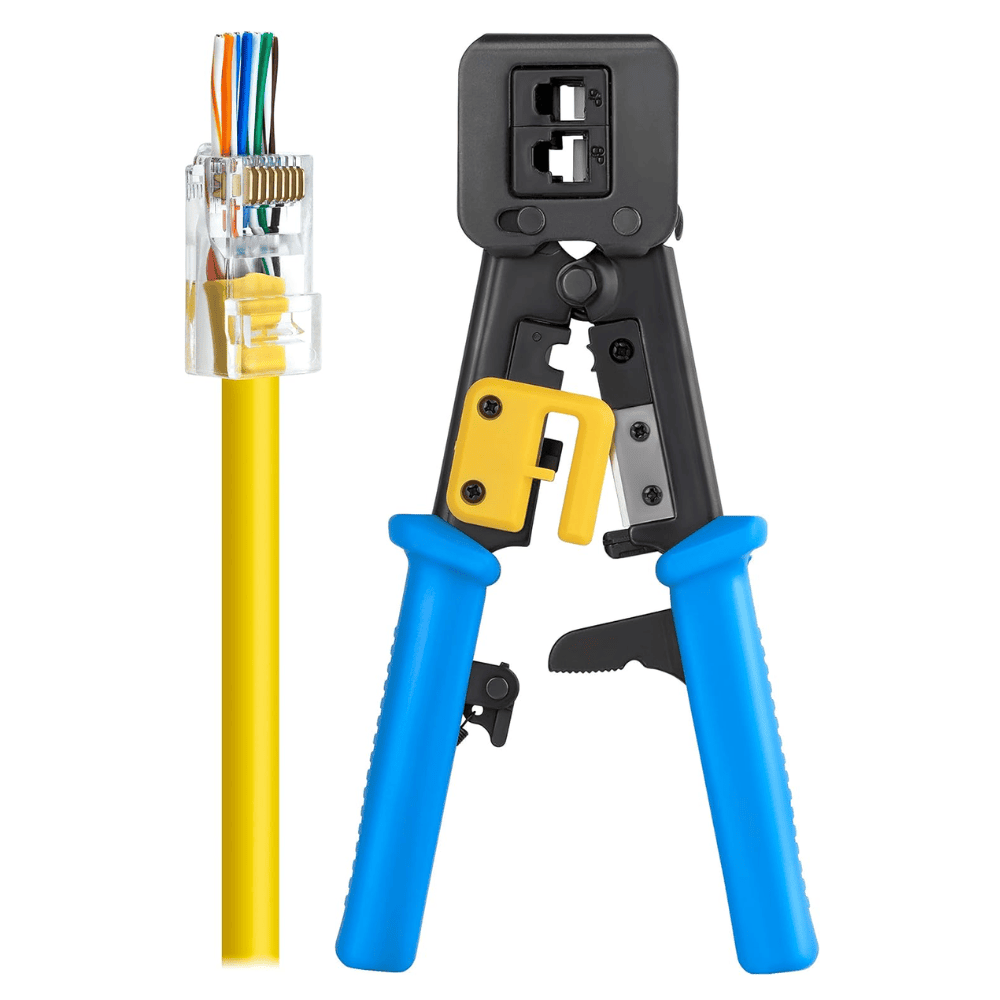

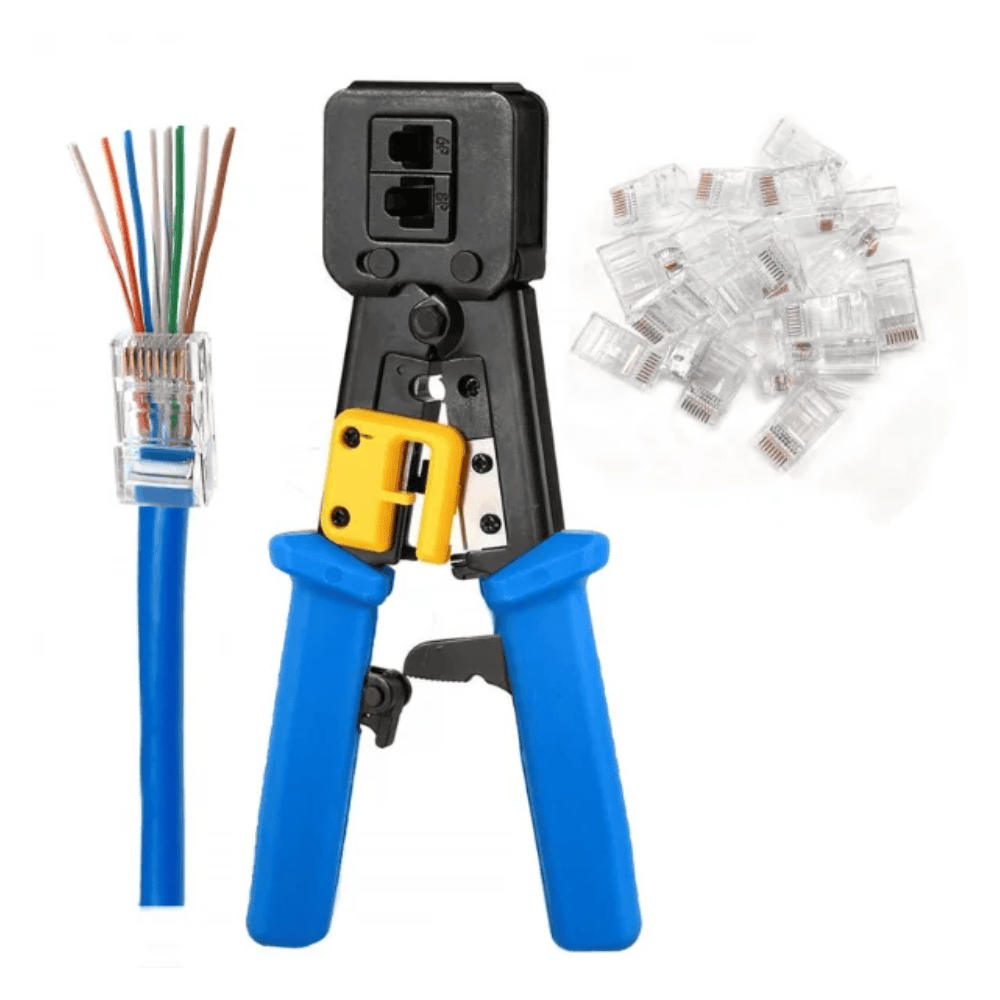

Rj45 pass through crimping tool

Description

Rj45 General Specifications

• Tool Type: RJ45 Pass-Through Crimping Tool
• Functionality: 3-in-1 (Crimping, Cutting, and Stripping)
• Connector Compatibility: RJ45 (8P8C) Pass-Through connectors; many models also support RJ11 (6P4C) and RJ12 (6P6C) connectors.

Cable Compatibility

• Supported Cable Types:
  • Cat5
  • Cat5e
  • Cat6
  • Cat6A
• Cable Type Support: UTP (Unshielded Twisted Pair) and STP (Shielded Twisted Pair), depending on the tool model.

Crimping Features

• Pass-through design allows cable conductors to extend through the connector before crimping, making it easier to verify the correct wire order.
• Simultaneously crimps and trims excess wire flush with the connector for a clean, professional termination.
• Ratcheting mechanism ensures full and consistent crimps with minimal effort.

Construction

• Body Material: Heat-treated carbon steel or hardened steel
• Blade Material: Hardened SK5 steel (replaceable on many models)
• Handle Material: Ergonomic non-slip PVC or rubber-coated grips
• Spring-Loaded Handles: Yes
• Safety Lock: Included on many models for secure storage.

Integrated Functions

• RJ45 connector crimping
• Cable jacket stripping
• Wire cutting
• Flush trimming of pass-through conductors
• Wire alignment guide (T568A/T568B on some models).

Performance

• Produces accurate and secure Ethernet cable terminations.
• Reduces wiring errors and cable waste.
• Suitable for solid and stranded Ethernet cables (depending on connector compatibility).

Applications

• LAN network installation
• CCTV network cabling
• Structured cabling systems
• Computer networking
• Data centers
• Home and office Ethernet installations
• Telecommunications and ISP deployments.

Package Contents

• RJ45 Pass-Through Crimping Tool
• User manual (varies by manufacturer)
