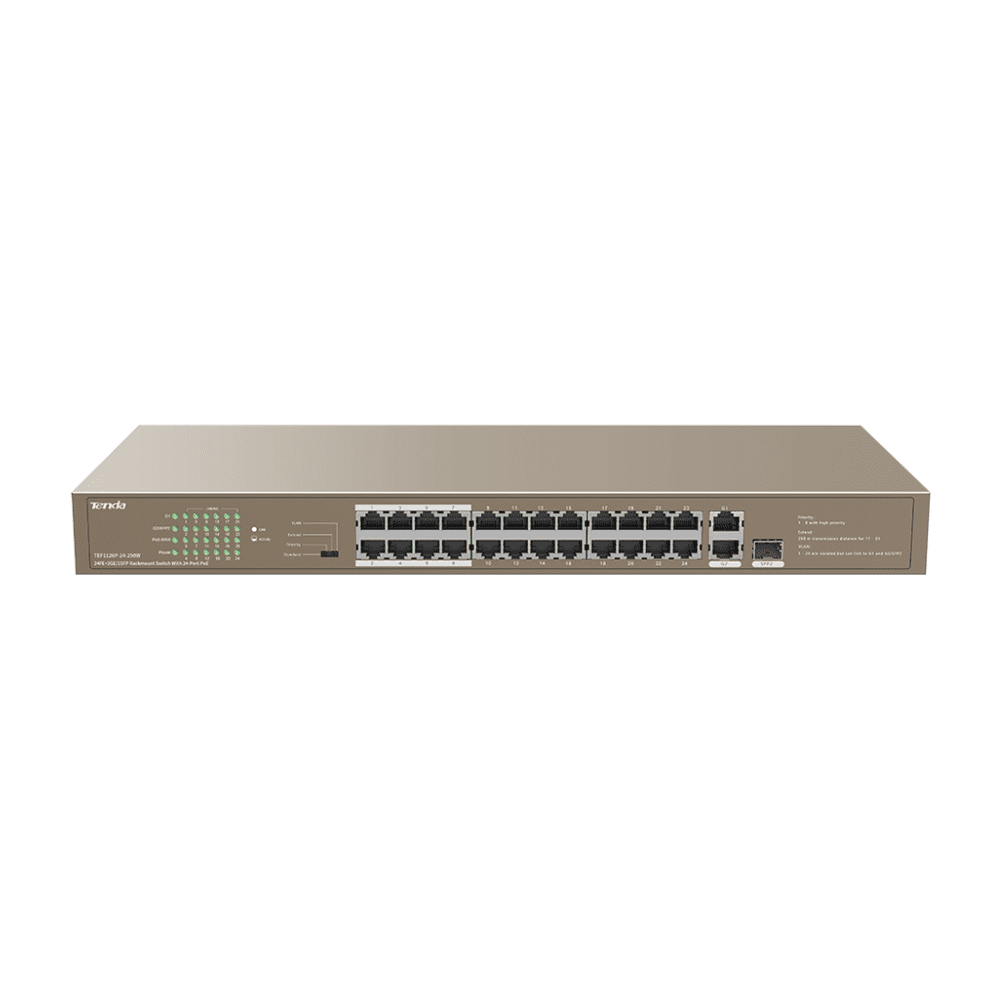

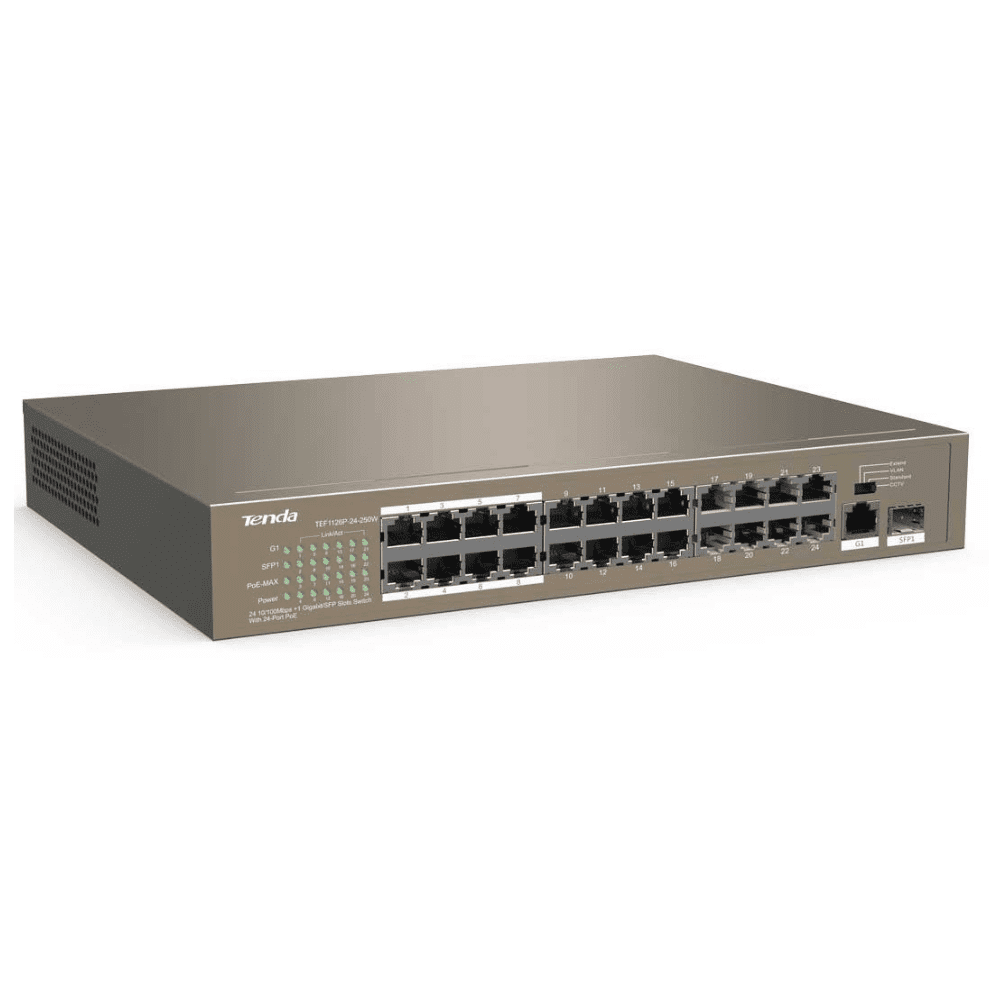

TENDA TEF1126P-24-250W (24FE+2GE/1SFP) Rackmount PoE Switch – Detailed Specifications

General

• Model: TENDA TEF1126P-24-250W
• Type: Unmanaged PoE Switch
• Deployment: Desktop, Wall Mount, or 19″ Rackmount
• Application: IP Surveillance, Wireless APs, VoIP Phones, SMB Networks, Schools, Hotels, Factories

Ports & Interfaces

• 24 × 10/100Mbps Fast Ethernet PoE+ Ports (RJ45)
• 2 × 10/100/1000Mbps Gigabit Uplink Ports (RJ45)
• 1 × Gigabit SFP Combo Port
• Auto MDI/MDIX Support
• CAT5e/CAT6 Cable Compatible

Network Standards

• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3ab
• IEEE 802.3z
• IEEE 802.3x
• IEEE 802.3af
• IEEE 802.3at

PoE Features

• 24 PoE+ Ports
• IEEE 802.3af/at Compliant
• Maximum PoE Output per Port: 30W
• Total PoE Budget: 230W
• Intelligent PoE Device Detection
• Automatic Power Management for Connected Devices

Performance

• Switching Capacity: 8.8Gbps
• Packet Forwarding Rate: 6.55Mpps
• MAC Address Table: 16K
• Buffer Size: 4MB
• Forwarding Method: Store-and-Forward

Smart Operating Modes

Standard Mode

• Normal switching and forwarding operation.

Priority Mode

• Prioritizes ports 1–8 to ensure smooth transmission for critical devices such as IP cameras.

VLAN Mode

• Isolates ports from each other to improve security and reduce broadcast traffic.

Extend Mode

• Extends PoE and data transmission distance up to 250 meters (10Mbps) for long-range CCTV deployments.

Protection Features

• 6kV Port Lightning Protection
• 6kV Power Supply Lightning Protection
• PoE Overload Protection
• Surge Protection
• PSE Short-Circuit Protection
• ESD Protection:
  • Air Discharge: ±10kV
  • Contact Discharge: ±8kV

LED Indicators

• 24 × Link/Activity LEDs
• 1 × G1 LED
• 1 × G2/SFP LED
• 1 × PoE Max LED
• 1 × Power LED

Power

• Input Voltage: 100–240V AC, 50/60Hz
• Maximum PoE Budget: 230W
• Built-in Power Supply

Physical Specifications

• Dimensions: 440 × 178.8 × 44 mm
• Fan: 1 Cooling Fan
• Form Factor: 1U Rackmount
