Description
Wireless Performance
-
Standards: IEEE 802.11ac/a/b/g/n (Wi‑Fi 5)
-
Dual-Band Speeds:
-
2.4 GHz: up to 300 Mbps
-
5 GHz: up to 867 Mbps
-
Combined: ≈ 1200 Mbps
-
-
Modulation & Bandwidth: Supports 20/40/80 MHz; 256‑QAM for faster speeds
-

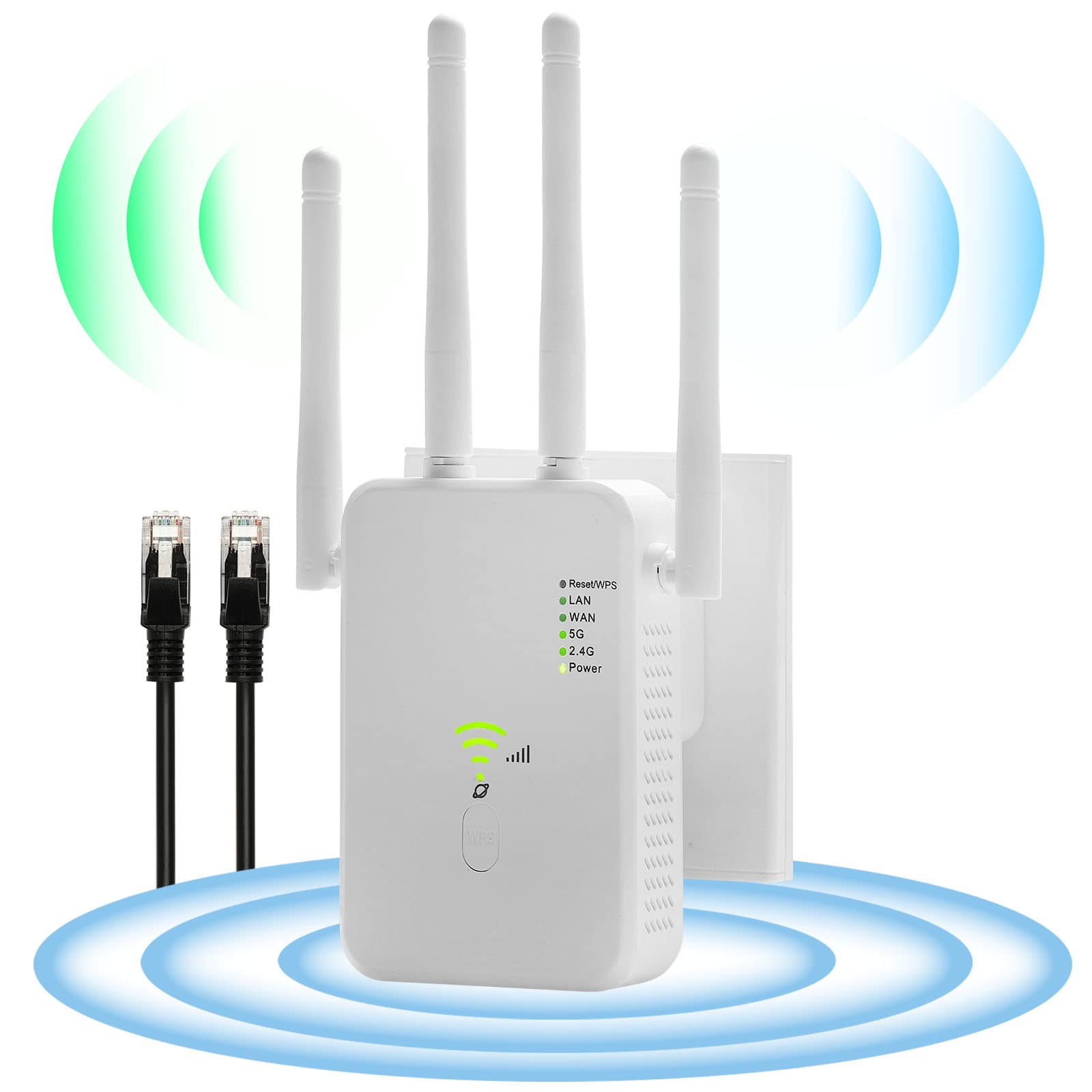

Antenna Setup: 4 × adjustable external high-gain antennas (~3 dBi each), rotatable for 360° coverage
Hardware & Ports
-
Ethernet Ports:
-
Typically 1 × 10/100 Mbps RJ45 LAN
-
Some models offer WAN/LAN switchable or true Gigabit (10/100/1000 Mbps)
-
-
Buttons:
-
WPS (WiFi Protected Setup)
-
Reset (restores factory settings)
-
-
Power Input: AC 100–240 V wall plug (region-specific)
Operating Modes
-
Repeater Mode – Boosts existing WiFi signal
-
Access Point Mode – Converts wired internet to wireless
-
Router Mode – Creates a private WiFi network
Security & Features
-
Encryption: WPA-PSK / WPA2-PSK, WEP
-
WPS: One-button setup for quick and secure connection
-
Smart Signal Indicator: Some models include LED lights to assist in optimal placement
Environmental & Build
-
Operating Temperature: 0 °C to 50 °C
-
Humidity: 10–90% non-condensing
-
Material: Durable ABS plastic
-
Design: Compact plug-in wall unit
-
Dimensions: Approx. 130 × 80 × 40 mm
-
Weight: Around 200 grams
Setup & Package
-
Setup Options:
-
WPS push-button for automatic pairing
-
Web interface for manual configuration
-
-
In the Box:
-
WiFi repeater unit
-
Quick installation guide
-
(Optional) Ethernet cable and power adapter
-
